AIM SmartyCam 3 GP camera 120 degree lens and 4mt long cable and CAN cable
Brand: Aim

AIM SmartyCam 3 GP camera 120 degree lens and 4mt long cable and CAN cable

Code: XS3GPFHD120L201

2.196,00€ -5% SAVINGS 109,80€
2.086,20 VAT PRICE & Free shipping to Italy
or 3 installments of 695.4 € without interest Pay with ScalapayInfo su Scalapay
Available in 5-7 working days
* delivery times are variable and depend on the availability of the goods and the delivery time of the courier.
ASK FOR INFO
*Non-EU customers, do not pay VAT. (you will pay the VAT in your own country upon receipt of the goods in accordance with local taxation)

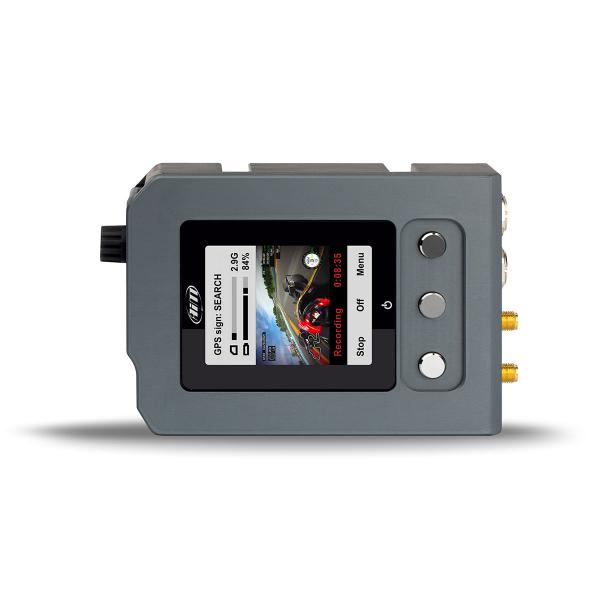

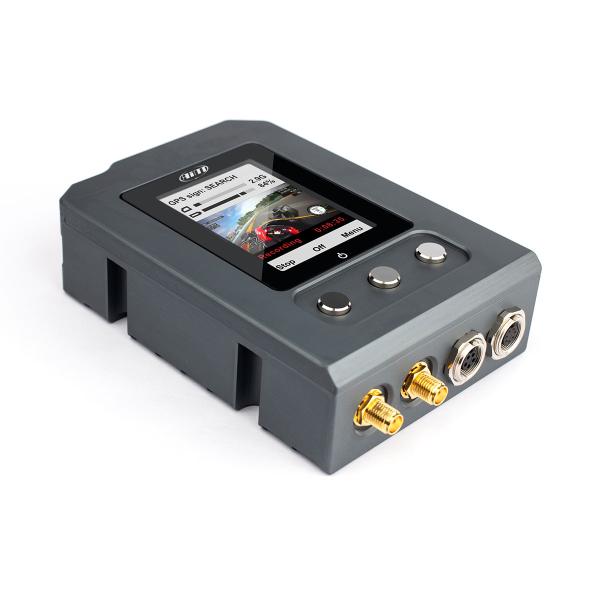

Aim SmartyCam 3 GP

The SmartyCam 3 GP camera is designed for motorsport with the aim of producing videos containing all the information you need.

With Race Studio 3 software it is possible to configure the overlays in a virtually infinite number of ways: add your logo and track map and choose the graphic objects you prefer from pre-built sets or single objects from several sets. Your videos will truly be "yours", in every sense, from the data to the graphic layout.

Version With Data HUB 2 inputs?

Integrated internal data logger
All the data received from the CAN Bus and from the internal sensors are recorded in .mp4 files produced at the end of the test; your SD (or MSD) Card contains all the information you need for in-depth data analysis. SD card sold separately.

Developed for extreme conditions
An on-board camera designed for motorsport must guarantee great resistance to the extreme conditions typical of racing and to the most adverse climatic conditions. For this reason SmartyCam 3 Sport has an IP65 waterproof rating and is made of coated aluminium, reinforced PA fiberglass and features a sapphire front glass for complete protection.

Automatic Start & Stop
When you're on the track you have other things to think about and SmartyCam 3 Sport knows it. For this it turns on/off automatically and starts/stops recording in the same way.

No "wave effect" with Global Shutter CMOS
Engine revs cause vibrations, which are a big problem for video recording. You will never experience that annoying "wave effect" you get from watching generic camera videos when the car is running at 7,000 RPM. SmartyCam 3 cameras have been designed for these environments and these vibrations. The "wave effect" is just a distant memory.




Technical characteristics
Usage temperatures: -10°C/+50°C
Video format: H.264 1920 x 1080 pixels @ 60 fps
Display resolution: 2.4" 240 x 320 pixels
Field of view: 67°, 84° or 120°
Supported SD card: Up to 2 TB
Lens: Low distortion camera lens
Auto Power OFF: Yes
Auto Start/Stop: Recording Yes
Auto Power ON: Yes
Weight Main unit: 320 g
Bullet: 45 g
Dimensions Main unit: 120.8 x 80.2 x 30.9 mm
                                    Bullet camera 24 diam x 46.0 mm (120° lens)
                                    Bullet camera 24 diam x 41.0 mm (67°-84° lens)
Bullet cable length: From 0.5 m to 4 m (7 lengths available)
Connectors: 2 Binder 712 female connectors + 2 SMA female connector (see pinout page) + 1 USB-C
Waterproof: IP65
Video Out: 3G-SDI
External power: 9-15 Volt
Body: Anodized Aluminum
Internal battery: Rechargeable lithium battery
