BA073000 KOSO RS2 LCD black digital dashboard Speedometer

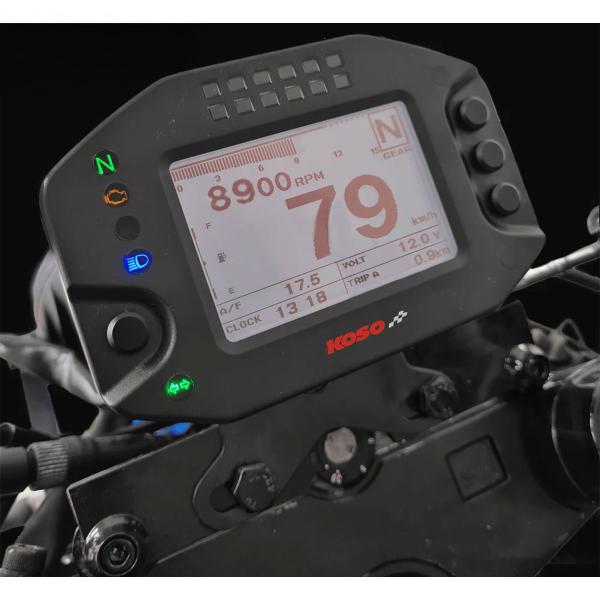

The KOSO RS2 is a next-generation multifunctional speedometer, designed to offer customization, intuitiveness and ease of use. Thanks to its modern interface, this instrument guarantees a clear and immediate display of all the essential information for daily use.

In addition to providing data such as speed, engine revolutions, total and partial odometer, gear indicator and clock, the KOSO RS2 also includes the Dyno function. This innovative feature allows you to measure the target distance and the target speed, turning every journey into a fun and performing experience.

Technical Specifications

Speed

• Range: 0-360 km/h (0-223 MPH)
• Unit: km/h or MPH, selectable

Display response time

• Less than 0.5 seconds

Total odometer

• Range: 0-99,999 km (miles), auto-reset at max limit

Trip odometer A/B

• Range: 0-9,999.9 km (miles), auto-reset at max limit

Over-speed warning

• Range: 0-90 km/h (0-56 MPH)
• Unit: 1 km/h or MPH

Maximum speed record

• Range: 0-360 km/h (0-223 MPH)

Tire circumference

• Range: 300-2,500 mm
• Unit: 1 mm

Gear indicator

• Range: N, 1-6

Engine RPM

• Range: 0-20,000 RPM
• Unit: 100 RPM

RPM levels

• Range: 0-9,000 / 12,000 / 15,000 / 18,000 / 20,000 RPM

RPM warning

• Range: 3,000-20,000 RPM

Maximum RPM record

• Range: 0-20,000 RPM

Digital thermometer

• Range: 0-250°C (32-482°F)
• Unit: 1°C or 1°F

High-temperature warning

• Range: 50-250°C (122-482°F)

Fuel level indicator

• Levels: 6 (16.6% each)

Oil change interval

• Range: 500-16,000 km (312-10,000 miles)

Voltage

• Range: DC 8-18 V

Target speed timer

• Range: 30-360 km/h (20-223 MPH)

Target distance timer

• Range: 50-1,500 m (1/32-30/32 miles)

Screen illumination

• Adjustable from 1 (darkest) to 5 (brightest)
• Separate day/night modes

Background colors

• White, green, light blue, blue, purple, red, orange, yellow

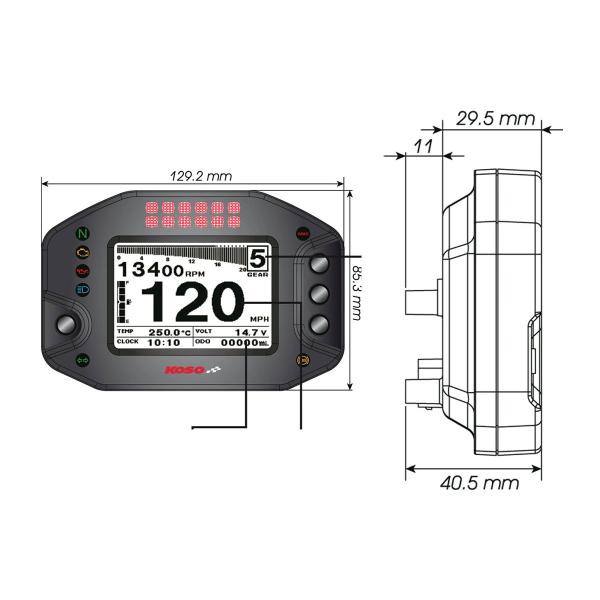

Dimensions

• 129.2 x 85.3 x 40.5 mm

Weight

• Approximately 151 g

Indicator lights

• Neutral (green), engine (yellow), oil (red), high beam (blue), turn signals (green), immobilizer (red), ABS (yellow)
