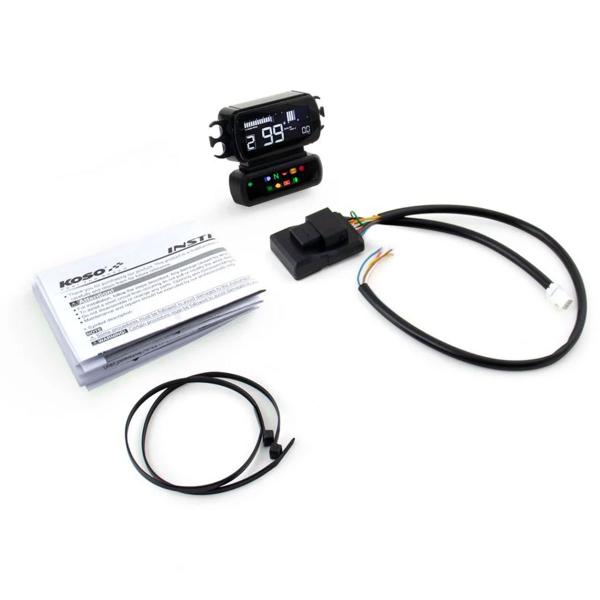

KOSO D2 LCD black digital dashboard Speedometer HarleyDavidson Dyna/Softail/883 2014-2017

Upgrade your Harley-Davidson Dyna, Softail, or 883 (2014-2017) with the KOSO D2 digital multifunction meter. This Plug-and-Play device features an 8-color LCD display, speedometer, tachometer, programmable shift light, and gear indicator. Perfect for precise and stylish motorcycle monitoring.

Key Features:

• Speed: Measures up to 199 km/h (124 mph) with customizable warnings.
• Mileage: Total and trip odometer with automatic reset.
• Advanced Monitoring: Engine temperature, tire pressure, and battery voltage.
• Backlighting: Select from 8 colors with adjustable brightness.
• CANBUS Integration: Works seamlessly with the bike's original system.
• Smart Alerts: Notifications for tire pressure, fuel level, maintenance, and more.

Technical Specifications:

• Speed Range: 0 ~ 199 km/h, interval 1 km/h.
• Mileage:
  • Total Odometer: 0 ~ 999,999 km.
  • Trip A/B: 0 ~ 9,999.9 km.
• RPM: Range 0 ~ 10,000, with customizable shift light (2,000 ~ 10,000 RPM).
• Engine Temperature: -38 ~ 572 °F (-39 ~ 300 °C).
• Voltage: Range 8 ~ 18 V, with low voltage alert.
• Tire Pressure: TPMS support, range 0 ~ 73 PSI (0 ~ 5.0 bar).
• Backlighting: 8 colors (white, red, orange, yellow, blue, light blue, purple, green), adjustable brightness (5 levels).
• Dimensions: 88.2 x 67.0 x 35.2 mm; weight approx. 70 g.
• Certifications: Compliant with JIS D 0203 (S2) standards.
