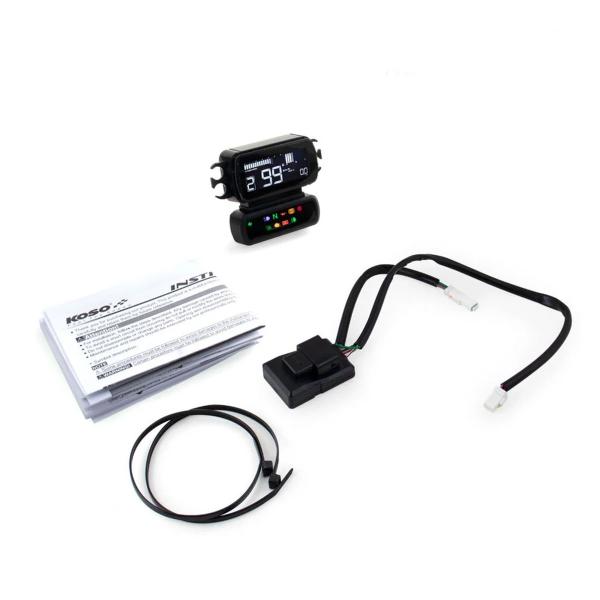

KOSO D2 LCD black digital dashboard Speedometer Harley Davidson Baggers 2014-2023

The KOSO D2 Multifunction Meter is the perfect choice for riders seeking a functional and modern upgrade for their Harley Davidson. With its intuitive design, advanced features, and ease of use, it significantly enhances the riding experience and vehicle control.

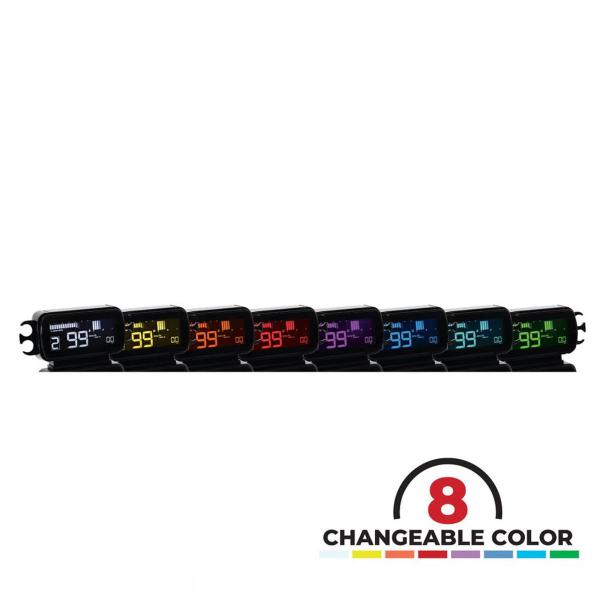

• Customizable LCD Display: Choose from 8 backlight colors.
• Gear Indicator: Clearly displays the current gear for easy reference.
• Shift Light Function: Programmable for gear shifts with red/white flashing alert.
• Comprehensive Monitoring: Includes engine temperature, tire pressure, battery voltage, and fuel level.
• Direct Compatibility: Plug-and-Play for seamless integration.

Note: For CVO models, activate the Start/Stop switch to access display settings without turning off the engine.

Technical Specifications

Speedometer

• Range: 0 ~ 199 km/h (0 ~ 124 MPH)
• Unit: Switchable between km/h and MPH
• Update Interval: < 0.5 seconds

Odometer

• Range: 000.000 ~ 999.999 km (miles)
• Unit: 0.1 km (miles)
• Automatically resets upon exceeding maximum value.

Trip Meter A/B

• Range: 0.000,0 ~ 9.999,9 km (miles)
• Unit: 0.1 km (miles)

Tachometer

• Range: 0 ~ 10,000 RPM
• Increment: 100 RPM

Tire Pressure (TPMS)

• Range: —, HI, 0 ~ 73 PSI, 0 ~ 506 kPa, 0.0 ~ 5.0 bar
• Unit: 1 PSI, 1 kPa, 0.1 bar

Fuel Meter

• Range: 10 levels

Engine Temperature

• Range: -38 ~ 572 °F (-39 ~ 300 °C)

Voltage

• Range: 8 ~ 18 V

Display Backlight

• Available Colors: White, Red, Orange, Yellow, Blue, Light Blue, Purple, Green
• Brightness Levels: Adjustable from 1/5 (darkest) to 5/5 (brightest)

Additional Functions

• Clock: 12/24-hour format
• Maintenance Reminder: 500 ~ 16,000 km (300 ~ 10,000 miles)

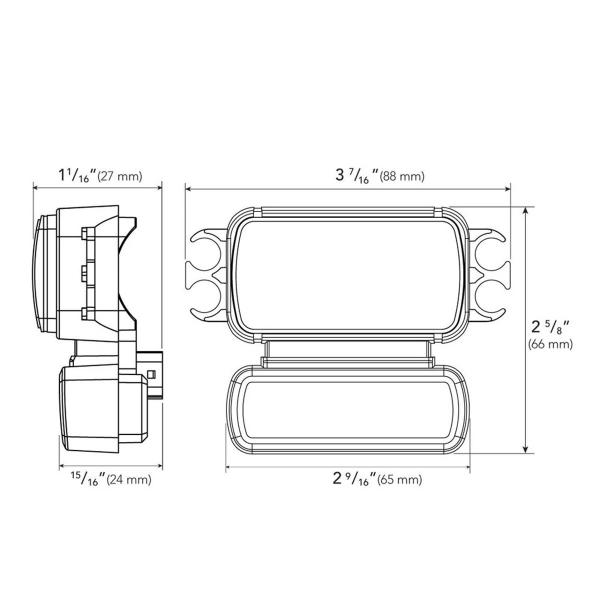

• Dimensions: 88.2 x 67.0 x 35.2 mm
• Weight: Around 70 g

Standards and Operating Conditions

• Operating Voltage: DC 12 V
• Operating Temperature: -20 ~ 85 °C
• Storage Temperature: -30 ~ 90 °C
• Certification: JIS D 0203 (S2)
