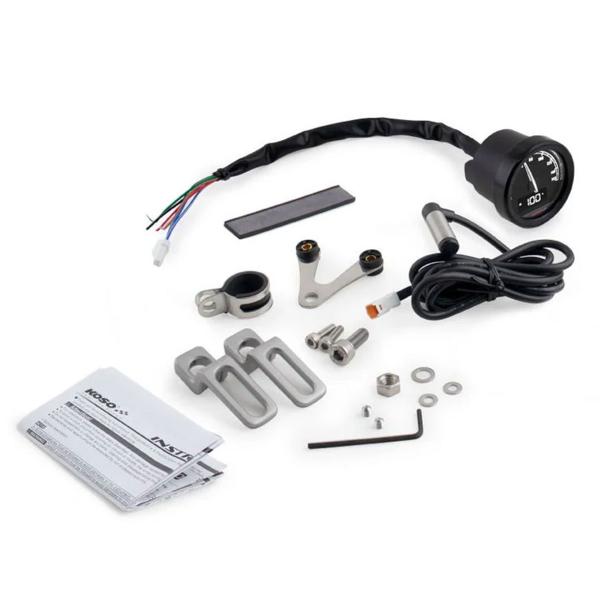

BA086000 KOSO D48 TNT-05 universal black Speedometer

The KOSO D48 TNT-05 Speedometer combines a compact design with exceptional performance, perfect for motorcycles and custom projects. With advanced features like max speed recording, total and trip odometers, adjustable backlight, and fuel management, it ensures safe and precise rides.

Key Features:

• Speed: up to 160 km/h or mph with selectable units.
• Odometer: total up to 99,999 km and trip with manual reset.
• Fuel management: 10-level indicator and low fuel warning.
• Voltmeter: measures 8.0 to 18.0 V with low voltage alert.
• Customizable backlight: 8 colors available with adjustable intensity.
• Durable: designed to operate in temperatures from -10°C to +60°C.

Technical Specifications:

• Speed Range: 0 ~ 160 km/h (MPH)
  • Display Unit: 20 km/h (MPH) (large), 10 km/h (MPH) (small)
• Speed Warning:
  • Range: 30 ~ 160 km/h (19 ~ 100 MPH)
  • The indicator lights up when the set value is reached or exceeded.
  • Unit: 1 km/h (MPH)
• Maximum Speed Recording:
  • Range: 0 ~ 160 km/h (MPH)
  • Manually resettable
• Total Odometer:
  • Range: 0 ~ 99,999 km (miles)
  • Unit: 1 km (mile)
• Trip Odometer (A/B):
  • Range: 0 ~ 9,999.9 km (miles)
  • Manually resettable
  • Unit: 0.1 km (mile)
• Wheel Circumference:
  • Range: 300 ~ 2,500 mm
  • Unit: 1 mm
• Sensitive Points:
  • Range: 1 ~ 20 points
• Fuel Indicator:
  • Levels: 10 (each level represents 10% of the fuel)
  • Compatible Resistance: 100 Ω, 250 Ω, 270 Ω, 390 Ω, 510 Ω, 1,200 Ω, SW, custom mode
  • Low fuel warning: range 0 ~ 30%, adjustable in 10% increments.
• Clock:
  • Format: 24-hour or 12-hour
• Voltmeter:
  • Range: DC 8.0 ~ 18.0 V
  • Unit: 0.1 V
  • Low voltage warning: range 8.0 ~ 13.0 V
• Backlight:
  • Intensity adjustable in 5 levels (from darkest to brightest, 20% increments)
  • Colors available: white, red, orange, yellow, green, blue, light blue, purple.
• Power Supply: DC 12 V
• Operating Temperature Range: -10°C ~ +60°C
• Storage Temperature Range: -20°C ~ +80°C
• Dimensions: Diameter 60 mm
• Weight: approximately 60 g
• Certification: JIS D 0203 (S2)
