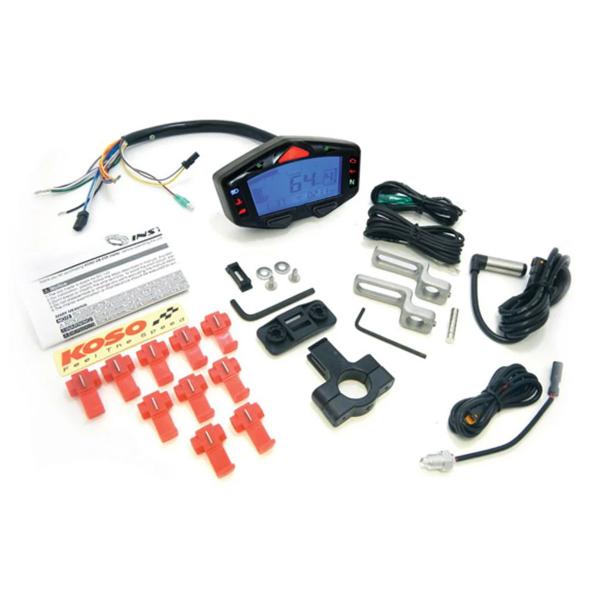

BA038010 KOSO DB-03R Racing Cockpit black universal digital dashboard instrument

The KOSO DB-03R Racing Cockpit is a multifunctional speedometer ideal for street motorcycles. Featuring a blue backlight display, it ensures maximum readability even at night. With advanced features like a speedometer, tachometer, gear indicator, and more, it is designed to enhance every ride.

Key Features:

• Speedometer: Measures speeds up to 360 km/h (225 MPH) with fast updates (< 0.5 s).
• Tachometer: Supports up to 15,000 RPM with adjustable shift light.
• Temperature: Monitors with a range from 0 to 250°C, configurable alerts included.
• Fuel: 6-level indicator with 16.6% precision per segment.
• Multifunctional: Includes clock, voltmeter, and ride hour counters.

Technical Specifications:

• Speed:
  • Range: 0 ~ 360 km/h (0 ~ 225 MPH).
  • Units: km/h or MPH selectable.
• Mileage:
  • Total counter: 0 ~ 99,999 km (miles).
  • Trip: 0 ~ 999.9 km (miles).
• RPM:
  • Range: 0 ~ 15,000 RPM.
  • Alerts configurable between 1,000 ~ 15,000 RPM with adjustable shift light.
• Temperature:
  • Range: 0 ~ 250°C (32 ~ 482°F).
  • Precision: 0.1°C (°F).
  • Alert: Configurable between 60 ~ 250°C.
• Battery: Measures DC voltage between 8 ~ 18 V with alerts for <11.5 V or >15.5 V.
• Lighting: Adjustable backlight (1-5 levels) in blue, orange, and purple.

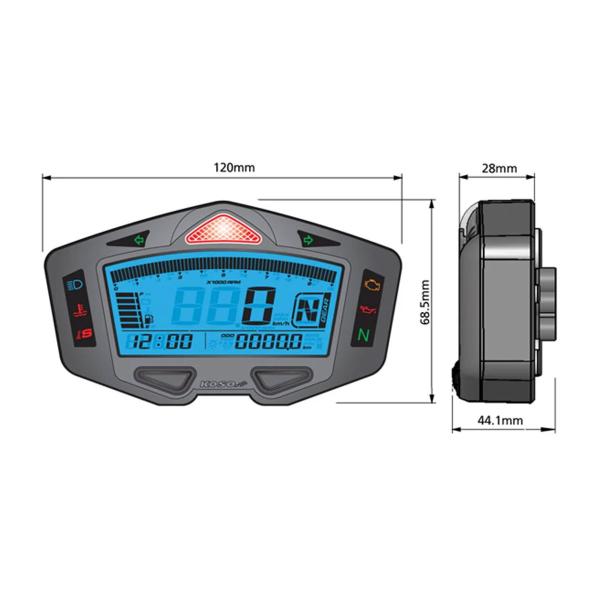

• Dimensions: 120 x 68.5 x 44.1 mm.
• Weight: Approximately 127.3 g.
• Certifications: Compliant with JIS D 0203 S2.
