XMXTPIG4001 AIM MXT 1.3 Street digital Display dashboard logger with 4m GPS

The AiM MXT 1.3 dashboard with street icons is a professional digital dash with a 10" TFT display, designed to provide maximum readability, advanced data management, and a more complete visualization of key signals useful also for street-oriented or track day configurations. Developed for motorsport applications, race cars, prepared vehicles, and advanced racing projects, it integrates a clear and customizable interface that allows real-time monitoring of parameters coming from ECU, GPS, analog/digital inputs, and configurable math channels.

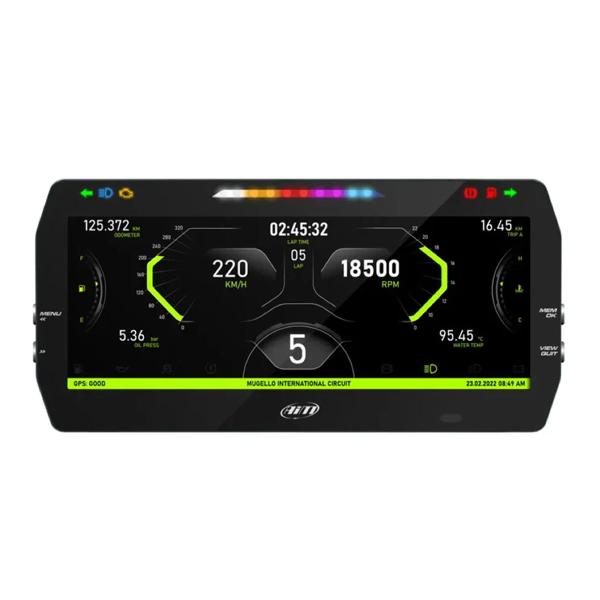

AiM MXT 1.3 dashboard with 10" TFT display and street icons

The large 10-inch TFT display with 1280 x 480 pixel resolution and 1100:1 contrast ensures precise information reading even during sporty use. The presence of street icons allows a more immediate visualization of vehicle functions and signals, making the dashboard more complete for installations where clear, intuitive, and easy-to-read indications are required. Through RaceStudio 3, users can customize graphic pages, choose the data to display, define units of measurement, scales, bar graphs, circular indicators, icons, and dedicated layouts.

Data acquisition, GPS and AiM track management

The AiM MXT 1.3 system acquires data from multiple sources, offering a complete platform for performance monitoring and analysis. Thanks to the GPS09c included in the kit, in dash logger versions the dashboard automatically recognizes tracks stored in the AiM database, which includes over 4,000 circuits, and starts lap time acquisition. If the track is not available in the database, the system can still recognize circuit characteristics and calculate lap times. The management of four satellite constellations provides accuracy generally below 0.5 m, with position and speed acquisition 25 times per second.

Why choose AiM MXT 1.3 with street icons?

The AiM MXT 1.3 dash with street icons is ideal for users who want a racing digital dashboard with a more complete onboard information display. The 10 configurable RGB LED shift lights, 6 RGB alarm LEDs, 3 CAN connections, compatibility with over 2,000 ECU protocols, and the 100 Hz inertial platform make it an advanced tool for managing data, alarms, lap times, and vehicle dynamics. The IP67 protection rating ensures reliability even in demanding conditions.

Technical features:

• Brand: AiM
• Model: MXT 1.3 with street icons
• Product type: Dash logger / motorsport digital dashboard
• Display: 10" TFT
• Display resolution: 1280 x 480 pixels
• Contrast: 1100:1
• Icons: Integrated street icons
• Alarm LEDs: 6 configurable RGB LEDs
• Shift light: 10 configurable RGB LEDs

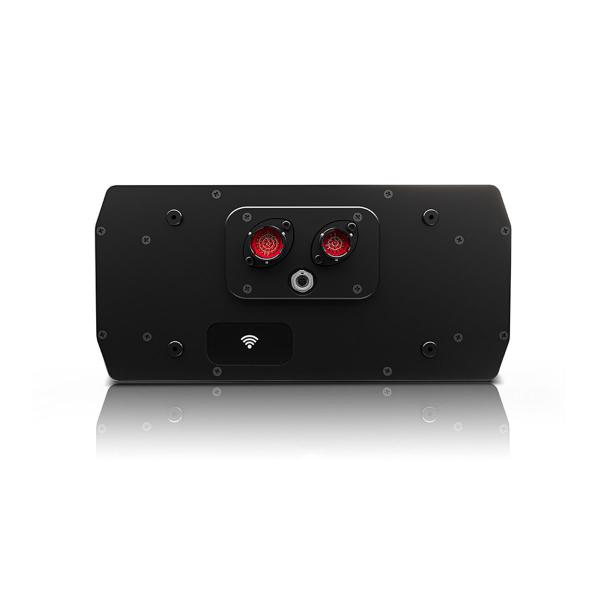

• Connectors: 2 Motorsport connectors + 1 Binder connector
• CAN connections: 3
• ECU connection: Compatible with over 2,000 ECU protocols
• Analog/digital channels: 8 configurable
• Digital speed channels: 4
• RPM channel: 1
• Digital outputs: 2
• Inertial platform: 3D accelerations and gyroscope
• Inertial platform frequency: 100 Hz
• Math channels: Fully configurable
• Wireless connection: Wi-Fi 802.11
• Protection rating: IP67

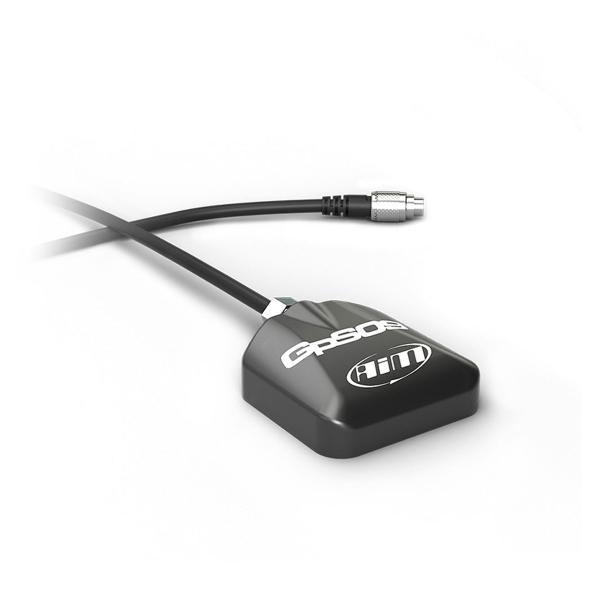

• GPS: GPS09c included in the kit
• Track database: Over 4,000 tracks
• GPS acquisition: 25 Hz
• GPS accuracy: Generally below 0.5 m
• Supported expansion modules: Up to 8 modules
• Software: RaceStudio 3 available as a free download
• User manual: Available as a free download from the AiM website
• Included equipment: MXT 1.3 with street icons
• Included equipment: GPS with cable
• Included equipment: Standard 37-pin wiring harness
• Included equipment: Amphenol-Mini USB adapter
• Included equipment: USB-Mini USB cable 200 cm
• Use: Motorsport, track use, track days, prepared vehicles, data acquisition and parameter display
• Advantages: Large display, street icons, built-in GPS, track management, inertial platform, CAN connections and IP67 protection
