MXP 6-inch futuristic instrumentation

 Code: XA6MXPA13G1

Fully configurable pages

The information is easily accessible thanks to the use of page technology, it is possible to create and scroll through the appropriate buttons.

Large high contrast display

The large TFT color display with high contrast allows an always impeccable reading of data and information, the display is also equipped with a light sensor that adjusts the brightness according to the ambient light, making data consultation always clear and immediate in any light condition.

Configurable alarm signals

It is possible to configure 6 alarm signals by deciding the switching on priority, the color, and also the flashing, defining the frequency or leaving the light on steady. It is also possible to associate a message to be displayed on the display with the relative indicator light. The 5 rgb LEDs are individually configurable by the user giving the possibility to decide color and mode for each gear change with the integrated shift light. The road icons can be selected from a list included in "Race Studio 3 - Icon Management" and can be set according to personal needs. You can also set custom icons.

Expandability at the highest level

MXP has two digital outputs, which can be managed separately. They can be used independently on analogue, digital or CAN inputs. Through these it is possible to manage external systems, such as activating or deactivating cooling fans or circulation pumps depending on the occurrence or utility. The MXP allows messages to be sent to a CAN line allowing the range of vehicle controls to be extended. Equipped with 2 analogue inputs for mounting special cameras so as to be able to transform the large display into a functional rear view camera.

Through the CAN-bus, the MXP is expandable with 8 additional modules to maximize your driving experience and adapt to new requirements:

GPS08 Module

• Thanks to this module it is possible through the interface of the supplied software Race studio 3 to download and analyze the lap data to intervene on the engine set-up while improving one's driving technique.

Channel Expansion

• Allows you to add 4 analogue 0-5 Volt channels.

TC Hub

• Allows you to add 4 K thermocouples.

LCU-One CAN

• LCU Wide band lambda controller, equipped with a probe: transmits all information on the Air/Gasoline ratio, lambda probe value and exhaust gas temperature allowing engine tuning.

SmartyCam HD cameras

• The on-board cameras that read the data from the system and automatically superimpose them on the video for an even more precise reading.

Memory Module

• It is a support for SD cards useful for recording data from the AIM logger during track sessions.

Race Studio 3,  the perfect software for your AIM

With the Race studio 3 it is possible:

• Create, modify, delete, import and export configurations with all channels, the drivers of the control unit, the mathematical channels, the display pages, the digital outputs, the alarms, the shift lights and all the desired expansions. It is also possible to manage the maps of all your favorite circuits and compare two laps on the same track by watching the videos recorded by the SmartyCam HD and GP HD cameras.

Wi-Fi connectivity

• With MXP you can configure and download data securely wirelessly, with a WiFi 802.11 connection.

Features:

6" high contrast 1,100 lumen TFT display, 5 configurable RGB alarm LEDs, integrated 10 RGB LED shift light array, 2 Motorsport connectors + 1 Binder connector, 3 CAN connections, connection with 1,000+ industry leading ECUs, inertial platform, 8 analog inputs at a max of 1,000 Hz each, 4 digital speed inputs, coil RPM input, lap signal input, 2 digital outputs, realtime fully configurable math channels, 802.11Wi-Fi connection, IP65

• Display: 6” TFT
• Resolution: 800x480 pixels
• Contrast: 600:1
• Brightness: 700cd/m2 - 1,100 Lumen
• Ambient light sensor: Yes
• Alarm display icons: Yes, freely configurable
• Alarm LEDs: 5 configurable RGB LEDs
• Shift lights: 10 configurable RGB LEDs
•  CAN connections: 3
• ECU connections: CAN, RS232 or K-Line
• ECU compatibility: 1,000+ industry leading ECUs
• Expansion CAN connection: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD
• Analog inputs: 8 fully configurable, max 1,000 Hz each
• Digital inputs: 4 Speed inputs, lap signal, coil RPM input
• Digital outputs: 2 (1 A max each)
• Second CAN: Yes
• Wi-Fi connection: Yes
• Inertial platform: Internal 3 axis ±5G accelerometer + 3 axis gyro + 3 axis magnetometer
• Internal memory: 4 GB
• Body: Anodized Aluminum
• Pushbuttons: Metallic
• Connectors: 2 Motorsport connectors + 1 Binder connector
• Power consumption: 400 mA
• Dimensions: 189.6 x 106.4 x 24.9 mm
• Weight: 640 g
• Waterproof: IP65

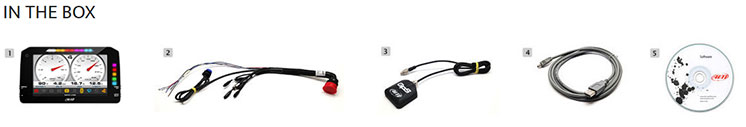

In the box:

• MXP, GPS Module with cable, USB cable, 37 pins standard harness, Race Studio 3 software.
